石英晶體振蕩器
- 編號：50197430
- 頻率：24.000MHz
- 尺寸：5.0x3.2mm
FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振
FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振,FQ5032B-18.432,無源晶振，美國進口晶振，F(xiàn)OX福克斯晶振，型號：FC5BQFormerFQ5032B系列，編碼為：FC5BQCCMF24.0-T1，頻率為：24.000MHz，小體積晶振尺寸：5.0x3.2m...
TXC,NDK,希華.jpg)
FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振,FQ5032B-18.432,無源晶振，美國進口晶振，F(xiàn)OX福克斯晶振，型號：FC5BQ Former FQ5032B系列，編碼為：FC5BQCCMF24.0-T1，頻率為：24.000MHz，小體積晶振尺寸：5.0x3.2mm封裝，四腳貼片晶振，貼片石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，公差降至±20PPM，穩定性至±10PPM。具有超小型，輕薄型，耐熱及耐環境特點，被廣泛用于：移動通訊設備，血壓計晶振，平板電腦，智能手機，無線網絡，藍牙模塊，車載控制器，醫療設備，安防設備，數碼電子，物聯網等應用。
格發TXC,NDK,希華.jpg)

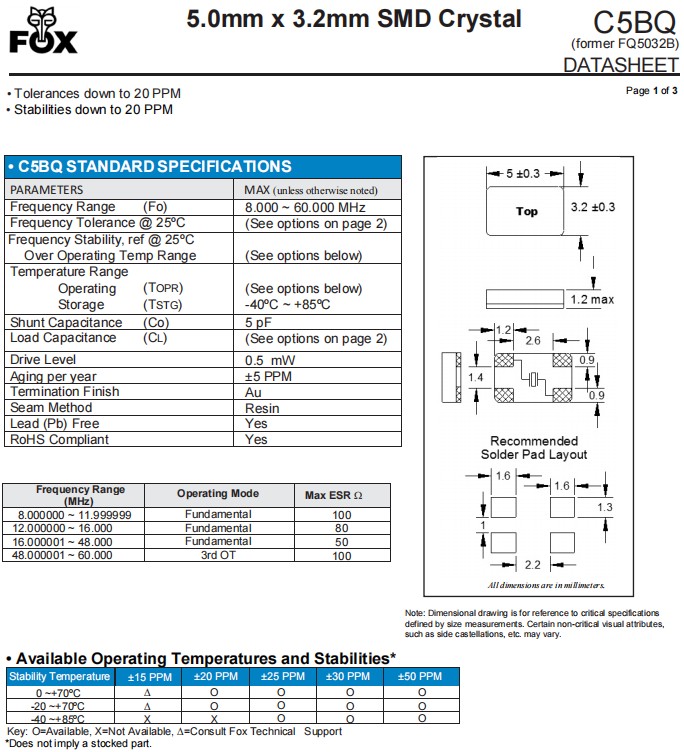

FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振,FQ5032B-18.432,無源晶振，參數表
| PARAMETERS | MAX (unless otherwise noted) | ||||||||||||
| Frequency Range (Fo) | 24.000MHz | ||||||||||||
| Frequency Tolerance @ 25ºC | (See options on page 2) | ||||||||||||
|
Frequency Stability, ref @ 25ºC Over Operating Temp Range |
(See options below) | ||||||||||||
|
Temperature Range Operating Storage |
(TOPR) (TSTG) |
(See options below) -40ºC ~ +85ºC |
|||||||||||
| Shunt Capacitance (Co) | 5 pF | ||||||||||||
| Load Capacitance (CL) | (See options on page 2) | ||||||||||||
| Drive Level | 0.5 mW | ||||||||||||
| Aging per year | ±5 PPM | ||||||||||||
| Termination Finish | Au | ||||||||||||
| Seam Method | Resin | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes | ||||||||||||

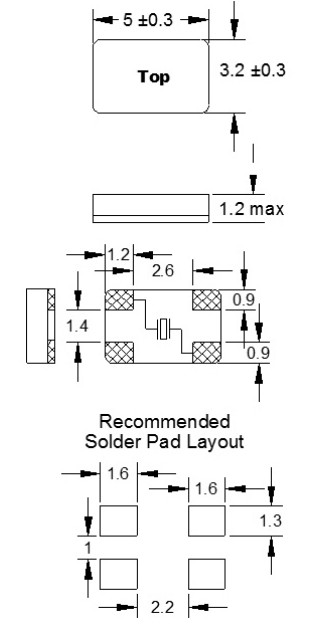

FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振,FQ5032B-18.432,無源晶振，尺寸圖
FOX石英貼片晶振,FC5BQCCMF24.0-T1,醫療設備6G晶振,FQ5032B-18.432,無源晶振
5032mm體積的貼片晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接，產品無鉛對應，為無鉛產品.
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-18.432 | Fox晶振 | C5BQ | 18.432MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-10.000 | Fox晶振 | FX532B | 10MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-19.6608 | Fox晶振 | C5BQ | 19.6608MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-14.7456 | Fox晶振 | C5BQ | 14.7456MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-10.000 | Fox晶振 | C5BQ | 10MHz | 無源晶振 | ±30ppm |
| FX532B-11.0592 | Fox晶振 | FX532B | 11.0592MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.000 | Fox晶振 | FX532B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
